Roof covering materials

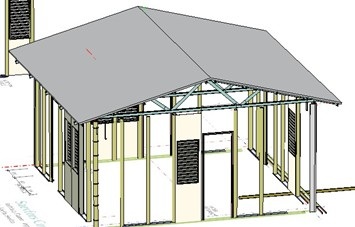

The most common nowadays is some variety of planar elements:

Galvanized – corrugated
Coated-metal-corrosion-protected
Aluminium alloys
Tar-paper glued on board
Tiled roofs
Shingles
Reinforced concrete

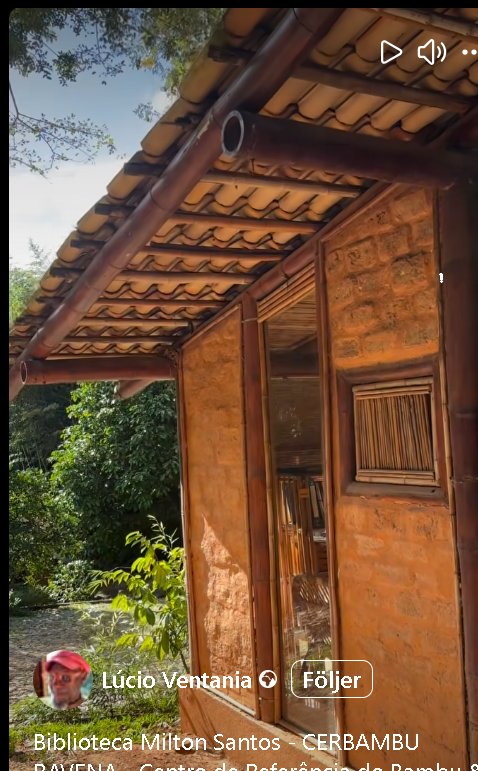

Tiled bamboo roof — Tiled roof on bamboo structure and adobe walls.
*Lucio Ventania, CERBAMBU, Minas Gerais, Brazil*

Double curved roofs cannot be covered with regular planar materials, only with shingles.

Bamboo-shingles from flattened culms. Unfortunately, as exposed to rains and UV-radiation from the sun, they will not last for a long time.

Back to Roofs Part 1 ←

Double curved roofs....WIP=Work In Progress*

*If exploring new horizons, check out the WIP tag and Natural Rubber!

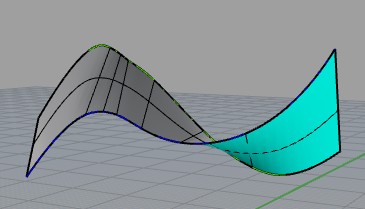

With a 3D-CAD like Rhino or Microstation (Bentley) you create intuitively two different curves and make a "loft" in between them.

From a Rhino 8 training video.
To secure a rain-proof cover, you probably need some sort of bitumen material - or growing live grass!

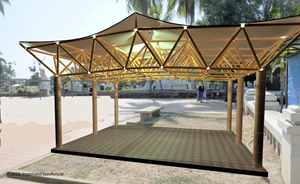

Project 2020 next to Wat Phumin Temple, Nan, Thailand

Architect: Ingemar Saevfors.

Sometimes the roof shape is important for the cultural integration.

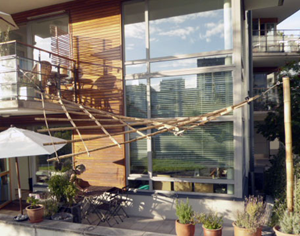

Hyperbolic Paraboloid roof with half-in-half joints.

This structure can actually be built with rectilinear elements! - but the surface is still double curved!

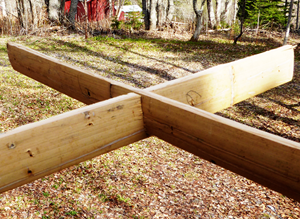

Half-in-half joint
